Lian Li Bezel Mods

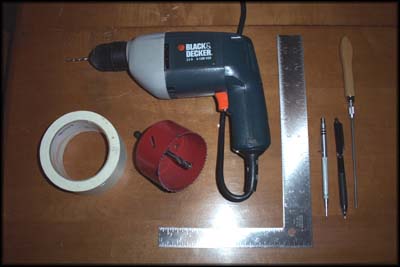

Tools List:
- Variable speed drill
- Pilot hole drill bit
- Masking tape
- 80mm Hole saw
- Straight edge
- Mechanical pencil
- Scribing tool
- Files (various)
- Screwdriver

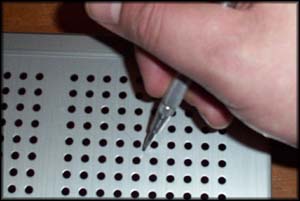

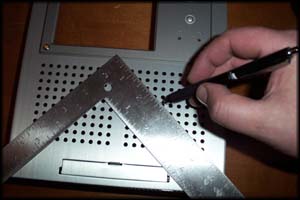

    First off, the bezel front has two squares of vent holes at the bottom and if you set an 80mm fan grill on top of one you will see that the corner holes line up almost perfectly with the holes on the grill, almost.  If you try putting both grills down at once though you will notice the grills over lap in the middle and will need to be modded for it all to fit together properly, not a big deal.  We need to find the center of the vent hole square, to do this I just lined up the corners and used the straight edge to get my lines.  Then, using the scribing tool I traced the pencil X over and over until it formed a slight depression in the aluminum.

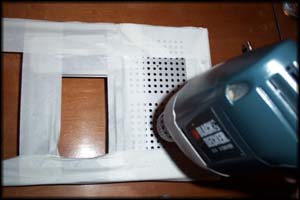

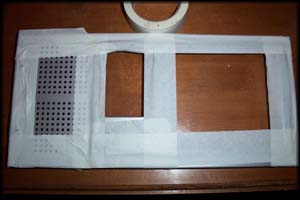

    I covered the entire face of the bezel with masking tape to prevent scratches caused by metal filings and modding debris, masking tape is cheap protection and you should feel free to use it liberally.  With the front completely covered it is time to drill a couple of pilot holes, a task that is no harder than lining up the bit with the scribed mark and drilling through.

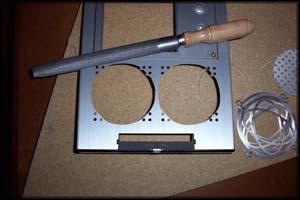

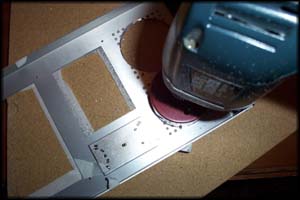

    I drilled the pilot holes from the front of the bezel and used the hole saw on the back side with a 3 1/8" (79mm) hole saw and a variable speed drill, which gives a very close to true 80mm hole.  The inner edge of most laser cut grills actually line up perfectly with the edge of the cut hole... unfortunately the grills that I have are some of the very first offered atomic grills, they are a little bigger around than the newer ones and they don't line up well.  Since the drilled holes are too small I put the grills down on the bezel and used a pencil to trace around the inside edge to show how much material still needed to be removed.  If you look closely at the below picture on the left compared to the picture on the right you can see how much filing was actually involved to make the holes the right diameter.  "Why not just use the dremel with a grinding wheel instead of the file?"  I knew you would ask and the answer is control, a file offers a higher level of precision than a rotary tool and the hazards of slipping aren't nearly as great.  Filing takes longer but the finished product is entirely worth it.

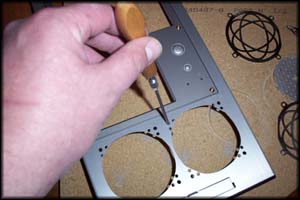

    Throughout the filing process I would continually position the grills on the bezel to see what areas required further work, when I was happy with the cuts I held the grills in place and traced around the insides of the screw holes.  I used a hobby file to size and position the screw holes, I didn't have to remove much material at all and if you use thread cutting screws you can actually get away with skipping this step but it does make lining them up straight and screwing them in a bit harder.

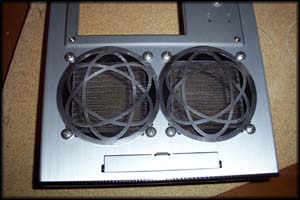

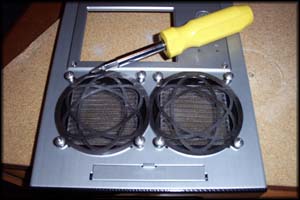

    Ok, now that everything is cut out and filed down we can get on to trimming the inner edges of the laser cut fan grills.  Since my grills were already modded before I considered writing this guide I will walk you through it.  Put both grills down and screw them on, use a pencil and mark the spot that overlaps (where the grills come to a V) at the top and bottom.  Make sure you mark both grills dark enough that you can see the pencil and then unscrew them.  Flip the grills over so that you are working from the back side of them and use a straight edge to connect the marks on the edges of both grills.  I used a Dremel with a cut off wheel to get them cut fairly close and then tested them for fit, it is better to leave a little excess and file it off later than take too much off initially with the Dremel.  I put a couple of black anodized aluminum filters on the back side of the bezel and the atomic grills on top and screwed everything down.

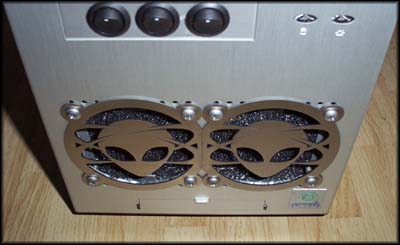

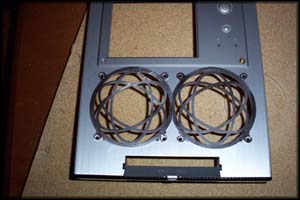

    Below is the same mod done to a Lian Li PC-72 bezel using alien fan grills, on this mod the edges of the hole saw cuts lined up perfectly with the inner edges of the grills... no filing involved.  The alien grills did require more material be removed than my atomic grills before they would sit flush, but the over all finished effect is very much the same.  Though I tried talking him into aluminum filters for his bezel Marklar decided to instead stick with the original filter that came stock with his PC-72 after spray painting it to match the aluminum case.  Looks good to me.
